14Apr, 2022

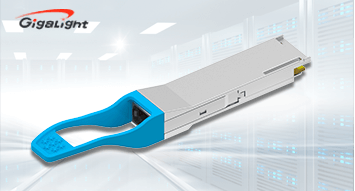

GIGALIGHT Launches Industrial-Grade 100G QSFP28 PSM4 for Special Data Center Scenarios
Shenzhen, China, April 14, 2022 – GIGALIGHT, the open optical network device explorer, today officially announced the launch of an industrial-grade 100G QSFP28 PSM4 optical transceiver, which meets the requirements of various data center intraconnection scenarios and other scenarios under severe conditions such as the 5G fronthaul.
Based on innovative COB design, the newly launched 100G QSFP28 PSM4 module of GIGALIGHT adopts parallel 4 lanes of 25Gb/s 1310nm DML transmitter and 4 lanes of PIN receiver to achieve 100Gb/s full-duplex transmission over 4 pairs of single mode fiber. The optical eye pattern margin is excellent, more than 31% under the full temperature condition of -40~85℃ (as shown in the figure below). The typical power consumption is less than 3.5W, which can meet the zero-error transmission of distance up to 10km at 100GE rate.
The Optical Eye Diagram of GIGALIGHT’s 100G QSFP28 PSM4 I-Temp Module (Channel 1)
The transmitter optical power and receiver sensitivity parameters are shown in the following tables.
| Channels | Average Optical Power | ||||
|---|---|---|---|---|---|
| -40℃ | 25℃ | 85℃ | |||
| 3.13V | 3.47V | 3.3V | 3.13V | 3.47V | |
| P2-ch1 | 1.10 | 1.30 | 1.59 | -1.00 | -0.93 |
| P2-ch2 | 1.89 | 1.78 | 1.08 | -1.03 | -0.98 |
| P2-ch3 | 1.75 | 1.69 | 0.96 | -1.51 | -1.48 |
| P2-ch4 | 1.31 | 1.41 | -0.23 | -2.55 | -2.42 |
| Channels | Sensitivity(dBm)-25GE(1E-12) | ||||
|---|---|---|---|---|---|
| -40℃ | 25℃ | 85℃ | |||
| 3.13V | 3.47V | 3.3V | 3.13V | 3.47V | |
| P2-ch1 | -11.82 | -11.70 | -12.59 | -10.11 | -10.28 |
| P2-ch2 | -11.32 | -11.21 | -12.76 | -10.69 | -11.00 |
| P2-ch3 | -10.29 | -10.30 | -12.13 | -10.78 | -11.06 |
| P2-ch4 | -10.10 | -10.98 | -12.36 | -10.25 | -10.31 |
About GIGALIGHT
As the open optical network device explorer, GIGALIGHT integrates the design, manufacture and sales of active & passive optical devices and subsystems. The main products are optical transceivers, silicon photonics transceivers, liquid cooling transceivers, optical passive components, AOC & DAC, coherent optical modules and open DCI BOX subsystems. GIGALIGHT is a hardware solution provider of innovatively designed high-speed optical interconnection that focuses on data center, 5G carrier network, metro WDM transmission, UHD broadcast video and other application fields.
8Apr, 2022

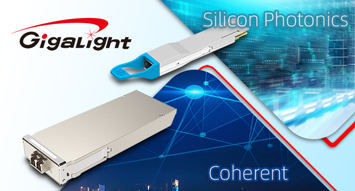

GIGALIGHT’s Silicon Photonics and Coherent Technologies Usher in New Breakthroughs
Shenzhen, China, April 12, 2022 – GIGALIGHT, the open optical network device explorer, announced today that it has made significant progress in the fields of datacom silicon photonics and coherent technologies, and its new generation of silicon photonics 400G QSFP-DD DR4 and 100G/200G CFP2-DCO will benefit data center and telecom customers worldwide.
The main progress of GIGALIGHT in the field of datacom silicon photonics technology is that they have realized the efficient coupling of silicon photonics through the silicon lens technology, so that the light coupling responsivity is as high as 0.8A/W under the condition of three temperatures, which can overcome the adverse effects to the link band caused by the multi-channel crosstalk. The commercial production of GIGALIGHT’s silicon photonics 400G QSFP-DD DR4 has been perfectly realized, and will be shipped in small batches in July this year. The following table shows the important test parameters of GIGALIGHT’s silicon photonics 400G QSFP-DD DR4.
| 【400G DR4 V0 Board】 | |||||
|---|---|---|---|---|---|
| Lane | Tx ER | Rx Sensitivity AOP(dBm) | Rx Sensitivity OMA(dBm) | ||
| Tx 4-lane off | Tx 4-lane on | Tx 4-lane off | Tx 4-lane on | ||
| CH1 | 4.7 | -10.22 | -8.36 | -10.27 | -8.41 |
| CH2 | 4 | -10 | -8.4 | -10.64 | -9.04 |
| CH3 | 4.2 | -9.77 | -8.07 | -10.23 | -8.5 |
| CH4 | 4 | -9.44 | -6.41 | -10.08 | -7.05 |
In the field of coherent communication technology, GIGALIGHT’s R&D team has finally realized the transplantation of self-developed algorithms on the new 7nm DSP platform after a long period of research, reaching the theoretical boundary value. Based on the research and development results, the company will achieve mass production of 100G/200G CFP2 DCO by the end of 2022 and deliver them to customers in batches.
Mr. Li, the founder of GIGALIGHT, said: “At present, silicon photonics technology and coherent technology are the technical peaks of the optical communication industry. Based on limited resources, GIGALIGHT overcomes various difficulties and achieves relevant results. It is not easy. GIGALIGHT would like to thank our partners and suppliers for their strong support. Let’s move forward together, adhering to the lofty concept of open silicon photonics technology and open coherent optical communication!”
