19Dec, 2025
    1.6T Heterogeneous Interconnection – 1.6T OSFP224 DR8 PHO to 2×800G DR4 Heterogeneous Interconnection Solution

    Overview

    GIGALIGHT’s 1.6T OSFP224 DR8 PHO(Pluggable Hybrid Optics) SiPh Module adopts the company’s patented Hybrid Architecture Equivalent technology. This patent is designed to work with both VCSEL and silicon photonics-based architectures, offering a flexible approach to next-generation high-speed links.Unlike conventional full-DSP optical modules, the Hybrid series integrates DSP on only half of the channels, thus achieving significant improvements in power consumption and latency reduction.

    In essence, Hybrid optical modules and active optical cables draw on the industry’s general design methodologies for LPO/LRO. However, from the perspective of strict system signal alignment, Hybrid technology delivers a more advanced design strategy.The equivalent formula for the Hybrid design approach can be simply understood as:Hybrid = (LTO + LRO) / 2.

    It’s core objective is to create a brand-new, more advantageous technical pathway in terms of power consumption, latency, and cost, catering to 800G AI&DC interconnection, as well as 1.6T and higher-rate AI&DC systems.

    Technical Highlights

    • AI/ML-Driven: In response to the explosive growth of AI computing power, networks are evolving toward the 1.6T era!
    • Key Breakthroughs: Addressing the power consumption and efficiency challenges posed by branch interconnection and Gearbox in 1.6T/800G heterogeneous networks.
    • Objective: Enabling the construction of more efficient and cost-effective large-scale AI/ML data centers.

    Application Scenarios

    Leading AI enterprises have launched 1.6 Tbit/s switches supporting OSFP packaging and 800Gbit/s OSFP-RHS (Riding Heat Sink) packaged server fiber network cards, enabling 10,000-GPU cluster interconnection through a two-tier fat-tree network topology.

    1600G OSFP224 DR8 PHO: Product Introduction & Advantage Comparison

    19Dec, 2025
    1.6T DR16 CPO Silicon Photonics Engine Empowers New Ecological Solutions for CPO Switches

    Overview

    1.6T DR16 CPO silicon photonics engine based on linear direct drive technology. This is a subset of GIGALIGHT’s innovative products for the next optical network era:The linear silicon optical engine 1.6T CPO is composed of SOCKET slot packaging and LPO linear direct drive technology. Compared with the traditionally defined NPO/CPO, linear CPO silicon photonic engines remove DSP, which can significantly reduce system-level power consumption and costs.

    Key Products & Highlights

    1.6T DR16 CPO Silicon Photonics Engine

    • 16x100G PAM4
    • Up to 500m transmission
    • Power comsuption<16W

    EL-OSFP External Light Source Module

    • Front-facing optical port design
    • Supports 16-channel CWL high-power light sources

    Application Scenarios

    19Dec, 2025
    Hybrid Architecture Equivalent Active Optical Cable Solutions for 400G, 800G and 1.6T OSFP224

    Overview

    GIGALIGHT’s 400G, 800G and 1.6T OSFP224 Hybrid Architecture Equivalent Active Optical Cable products adopt the company’s patented technology: Hybrid Architecture Equivalent Active Optical Cable (Hybrid AOC) technology. This patent is compatible with both VCSEL-based and silicon photonics-based designs.Unlike conventional full-DSP optical modules, the Hybrid series integrates DSP on only half of the channels, thus achieving substantial improvements in both power consumption and latency reduction.

    In essence, Hybrid optical modules and active optical cables draw on the industry’s general design methodologies for LPO/LRO. However, from the perspective of strict system signal alignment, Hybrid technology delivers a more advanced design strategy. The equivalent formula for the Hybrid design approach can be simply understood as:Hybrid = (LTO + LRO) / 2.

    The core objective of this patent is to pioneer an innovative pathway for reducing power consumption, latency and cost, opening up new perspectives for 800G AI&DC interconnection as well as AI&DC interconnection at 1.6T and higher rates.

    Key Products Highlights

    • Transmission up to 30m/OM3 and 50m/OM4 MMF, up to 500m SMF
    • Comprehensively superior to traditional DSP solutions

    GIGALIGHT Hybrid Architecture Equivalent AOC Portfolio

    No.NamePower Consumption
    1400G QSFP-DD HYBRID VR8-AOC 6.6W
    2800G OSFP HYBRID VR8-AOC 9W
    3800G OSFP HYBRID PSM8-AOC-SiPh 12.5W
    41.6T OSFP224 HYBRID PSM8-AOC-SiPh 20W

    Application Scenarios

    19Dec, 2025
    800G OSFP/800G QSFP-DD, 1.6T OSFP224 Hybrid Architecture Equivalent Active Copper Cable（HYBRID ACC+）Product Solution

    Overview

    GIGALIGHT’s 800G OSFP/800G QSFP-DD and 1.6T OSFP224 Hybrid ACC+ architecture copper cable products adopt a key invention patent dedicated to AI & DC interconnection systems: Hybrid Architecture Equivalent Active Copper Cable (Hybrid ACC+). It combines the advantages of existing PCC/ACC and AEC technologies, featuring a redesigned system interconnection architecture. The solution aims to reduce power consumption, latency, and cost by 50% compared with AEC cables, while achieving up to 80% of the optimal AEC transmission distance.

    Key Products Highlights

    • Transmission up to 5m
    • Only 4-channel DSP per end
    • Pre-FEC BER better than 1E-8
    • Comprehensive breakthrough of traditional AEC and ACC solutions

    GIGALIGHT Hybrid Architecture Equivalent ACC Portfolio

    No.NamePower Consumption
    1800G OSFP HYBRID ACC+ 7W
    2800G QSFP-DD HYBRID ACC+ 7W
    31.6T OSFP224 HYBRID ACC+ 13W

    Application Scenarios

    19Dec, 2025
    AI & DC 800G HYBRID Optical Interconnection Innovation Solution – Replacing Conventional 800G AOC and 800G DR8 with HYBRID 800G VR8-AOC and DR8 PHO

    Overview

    AI & DC 800G HYBRID Optical Interconnection Innovation Solution replaces conventional 800G OSFP AOC with 800G OSFP HYBRID VR8-AOC, and traditional 800G OSFP DR8 optical modules with 800G OSFP DR8 PHO silicon photonics modules. Unlike standard full-DSP optical modules, the HYBRID series integrates DSPs on only half of the channels, thus delivering substantial improvements in power consumption and latency reduction.

    It can be said that HYBRID optical modules and active optical cables draw on and adopt the industry’s general design methodology of LPO/LRO. Nevertheless, from the perspective of strict system signal alignment, HYBRID offers a more advanced design strategy. The equivalent formula for the HYBRID design methodology can be simply interpreted as:HYBRID = (LTO + LRO) / 2

    Boasting high compatibility, low loss, and flexible deployment, this solution caters to the high-density and low-cost interconnection requirements of AI data centers, and achieves dual optimization of transmission performance and cost-effectiveness.

    Key Products Highlights

    800G OSFP HYBRID VR8-AOC （Replaces Conventional 800G OSFP AOC）

    • Maximum power consumption is less than 9 W, representing a power reduction of approximately 20%–25% compared with traditional DSP solutions.
    • With KP4-FEC enabled, the transmission distance can reach up to 30 m over OM3 multi-mode fiber (MMF) and 50 m over OM4 multi-mode fiber (MMF).
    • Link latency is reduced by around 50% relative to conventional DSP solutions.
    • Superior Signal Quality: Pre-FEC bit error rate (BER) reaches E-7/E-8 level.

    800G OSFP DR8 PHO (Pluggable Hybrid Optics) SiPh Module (Replaces Conventional 800G OSFP DR8)

    • Maximum power consumption is less than 13W, achieving an approximate 20% reduction compared with traditional DSP solutions.
    • Up to 500m transmission distance over SMF (with KP4-FEC enabled).
    • Link latency is reduced by around 50% versus traditional DSP solutions.
    • Superior signal quality: pre-FEC BER reaches E-7/E-8 level.

    Application Scenarios

    19Dec, 2025
    Innovative Solution for Traditional 400G Data Center HYBRID Optical Interconnection — 400G QSFP-DD HYBRID VR8-AOC as a Replacement for 400G QSFP-DD VR8 AOC

    Overview

    The 400G QSFP-DD HYBRID VR8-AOC product adopts GIGALIGHT’s patented technology: the Hybrid Architecture Equivalent Active Optical Cable (Hybrid AOC) technology. Unlike conventional FULL DSP optical modules, the HYBRID series integrates DSPs on only half of the channels, which significantly reduces power consumption and latency.

    It can be said that HYBRID optical modules and active optical cables draw on and adopt the industry’s general design methodology of LPO/LRO. Nevertheless, from the perspective of strict system signal alignment, HYBRID delivers a more advanced design strategy. The equivalent formula for the HYBRID design methodology can be simply interpreted as:HYBRID = (LTO + LRO) / 2.

    By innovating traditional solutions with hybrid interconnection technology, this product serves as an upgraded replacement for 400G QSFP-DD VR8 AOC. It features low loss, high compatibility, and flexible deployment, caters to the high-density and low-cost interconnection requirements of data centers, and achieves simultaneous improvements in transmission performance and operational efficiency.

    Technical Highlights

    • Power consumption: 6.6W, achieving a 20%–25% reduction(vs. >10W for conventional 400G QSFP-DD AOC)
    • Significant Cost Optimization: Approximately 21% lower overall cost compared with existing DSP-based solutions.
    • Transmission distance: Up to 30m over OM3 multimode fiber (MMF) and 50m over OM4 MMF.
    • Ultra-Low Link Latency: Link latency reduced by approximately 50% versus traditional DSP solutions.
    • Superior Signal Quality: Designed to achieve a pre-FEC BER (Bit Error Rate) level of E-7/E-8 over 50m OM4 MMF links.

    Application Scenarios

    19Dec, 2025

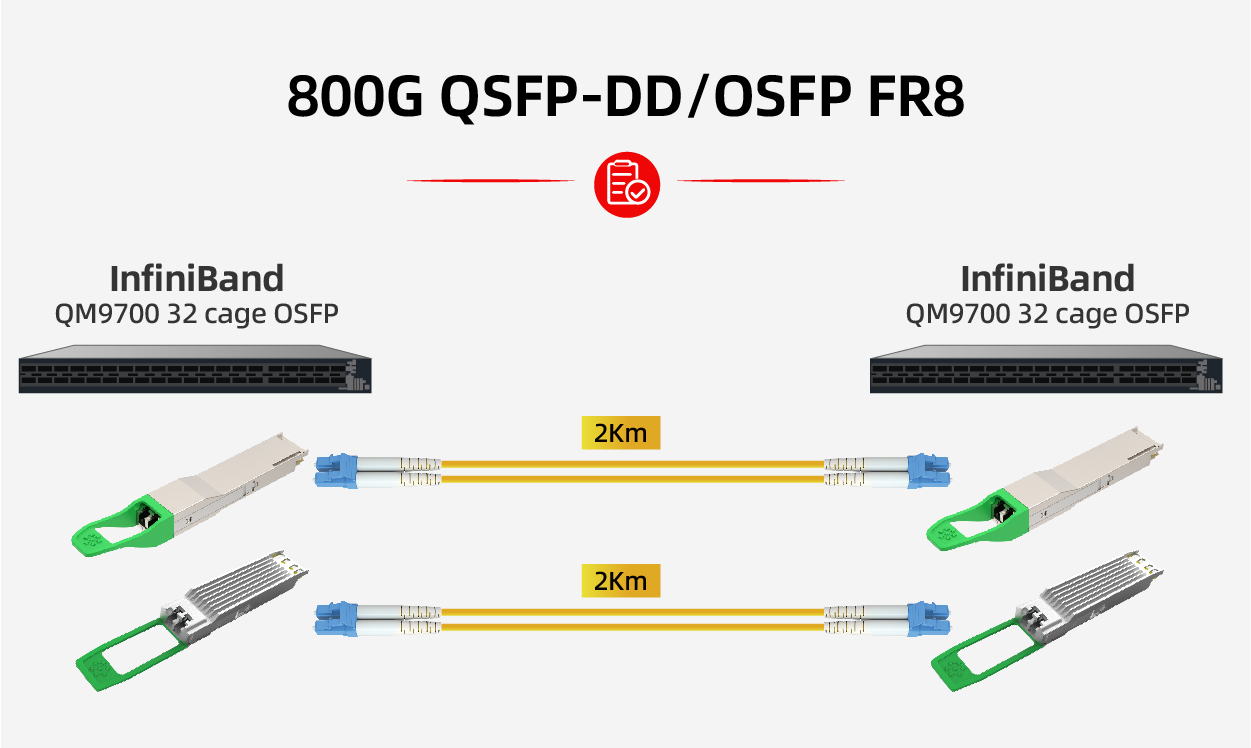

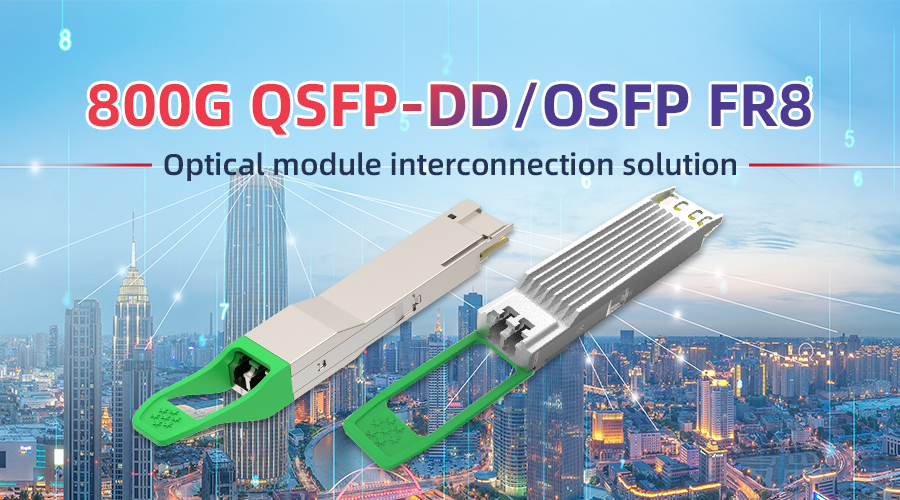

    800G FR8 – 2km Optical Module Interconnection Solution for Data Centers

    Overview

    GIGALIGHT’s 800G FR8 leverages 8-lane LWDM multiplexing to deliver 800GE transmission over 2 km with duplex fibers. Compared to the 800G 2×FR4 design, it saves two fiber strands, significantly reducing deployment and O&M costs.

    For next-generation optical circuit switch (OSC) systems, the FR8 can also support single-fiber single-mode BIDI 800GE up to 500 m via built-in or external circulators—maximizing OSC port efficiency and overall network value.

    Technical Highlights

    • 8x100G PAM4 modulation to realize 800Gbps high speed transmission
    • Support both OSFP and QSFP-DD standard
    • Built-in MUX/DEMUX, only dual LC fiber for bidirectional
    • Transmission distance up to 2km
    • By adopting an advanced power optimization solution, power consumption < 16
    • OMA sensitivity less than -4.5 dBm

    GIGALIGHT’s 800G FR8 – 2km Optical Modules

    NameDistance ConnectorPower ConsumptionNotes
    800G QSFP-DD FR8 2kmDual LC 16WIntegrated 8-channel LWDM TOSA
    800G OSFP FR82kmDual LC 16WIntegrated 8-channel LWDM TOSA

    Application Scenarios

    19Dec, 2025

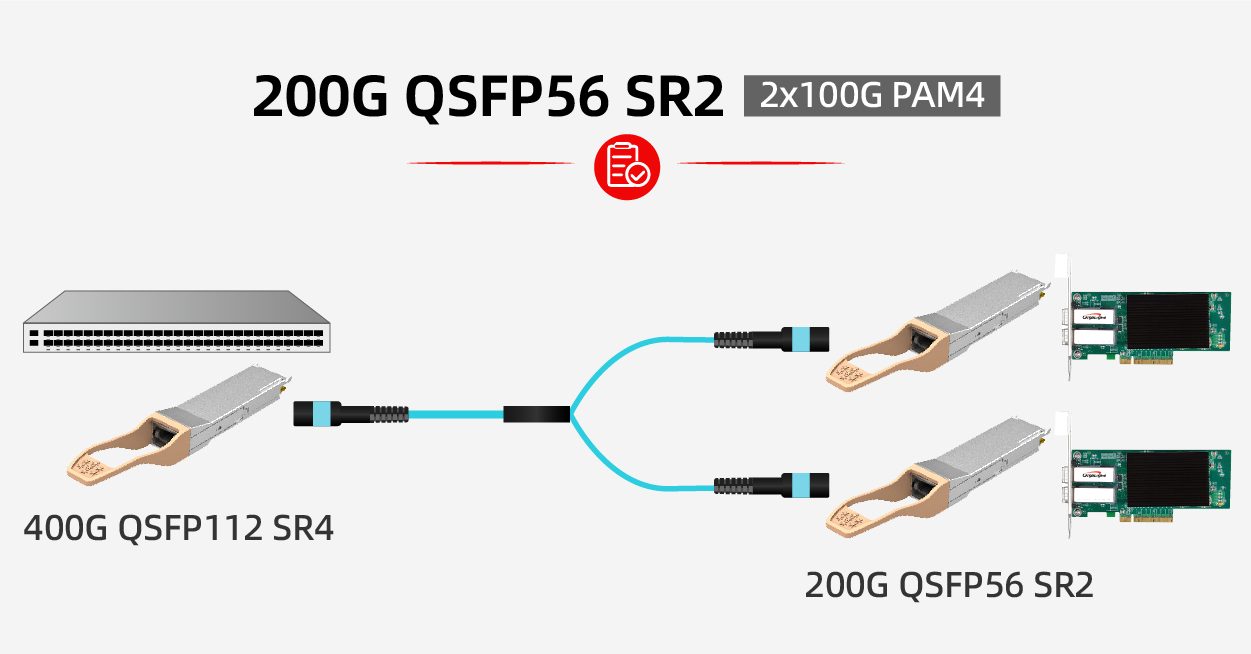

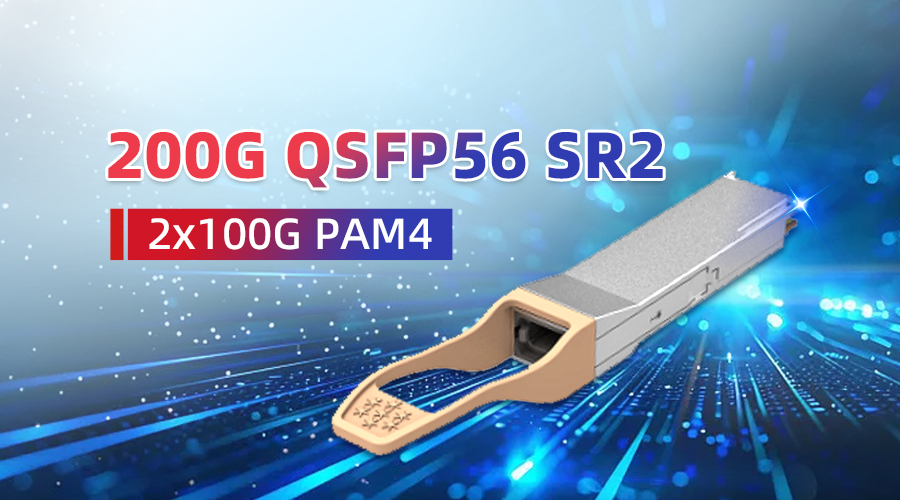

    200G QSFP56 SR2 Data Center Application Solution – Interconnection of Data Center Equipment with Different Baud Rates

    Overview

    GIGALIGHT’s 200G QSFP56 SR2 optical module is built on 2×100G PAM4 modulation technology and is a carefully crafted interconnect solution designed to meet the stringent requirements of the next-generation data center for ultra-high speed, low latency, and high compatibility.

    Product Name200G QSFP56 SR2
    Electrical Interface4×53.125Gbit/s PAM4
    Optics Architecture2×106.25Gbps PAM4
    Wavelength850nm
    ConnectorMPO12
    Distance100m(OM4)
    Power Consumption5W

    Technical Highlights

    High Rate and Low Power Consumption Combined

    This optical module supports a transmission rate of up to 200Gbps (2×100G PAM4), fully meeting the demanding bandwidth requirements of scenarios such as AI/GPU clusters and cloud computing. At the same time, it adopts an advanced energy efficiency optimization design, reducing overall power consumption by 30% compared to traditional solutions, thus providing strong support for the construction of green and low-carbon data centers.

    Broad Compatibility for Flexible Interconnection

    GIGALIGHT’s 200G QSFP56 SR2 optical module successfully breaks the limitations imposed by differences in switch platforms and is compatible with a variety of mainstream interface standards, including 400G QSFP112 and 400G QSFP56-DD. In addition, it supports multiple AOC interconnection schemes, enabling seamless interconnection between heterogeneous devices and significantly reducing customers’ costs in network upgrade and transformation.

    Industry Certification, Highlighting High-Reliability Design

    GIGALIGHT’s 200G QSFP56 SR2 optical module has successfully passed multiple industry authoritative certifications and fully complies with QSFP56 MSA and IEEE 802.3 standards. When paired with OM4 multimode fiber, it can achieve a transmission distance of up to 100 meters (SR2), fully meeting the needs of short-distance interconnection within machine rooms.

    Application Scenarios
