12G-SDI SFP+ Single-Receiver Modules

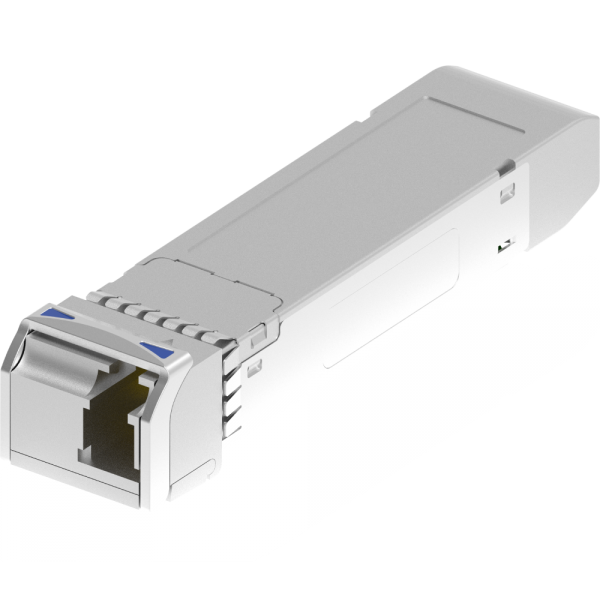

GIGALIGHT's 12G-SDI SFP+ Rx single-receiver optical modules (without transmitters) are designed for 12G-SDI video optical transmission links reach up to 20km over Single-Mode Fiber (SMF).Get a Quote

Features

Applications

Datasheets

More

Part Number	Product Description
GHR-12G-L2CDM	12G-SDI SFP+ Rx, 20km, SMF, Single LC, MSA Pinout
GHR-12G-L2CD	12G-SDI SFP+ Rx, 20km, SMF, Single LC, Non-MSA Pinout

SD/HD/3G/6G/12G-SDI SFP Single-Receiver Module
ST 259, ST 292-1, ST 424, ST-2081 and ST-2082 compatible
Metal enclosure for Lower EMI
PIN receiver w/o transmitter
Reach up to 20km over SMF
Supports SDI pathological patterns for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
Single LC connector
With reclocker in the module
RoHS compliant (lead free)
Single 3.3V power supply
Hot-pluggable SFP footprint
Commercial operating case temperature range: 0℃ to 70℃

SD/HD/3G/6G/12G-SDI

12G-SDI SFP+ Rx 20km (MSA) - GHR-12G-L2CDM

　　　　　　　　　　　　　　　　　　　　

12G-SDI SFP+ Rx 20km (Non-MSA) - GHR-12G-L2CD

　　　　　　　　　　　　　　　　　　　　

　　　　　
