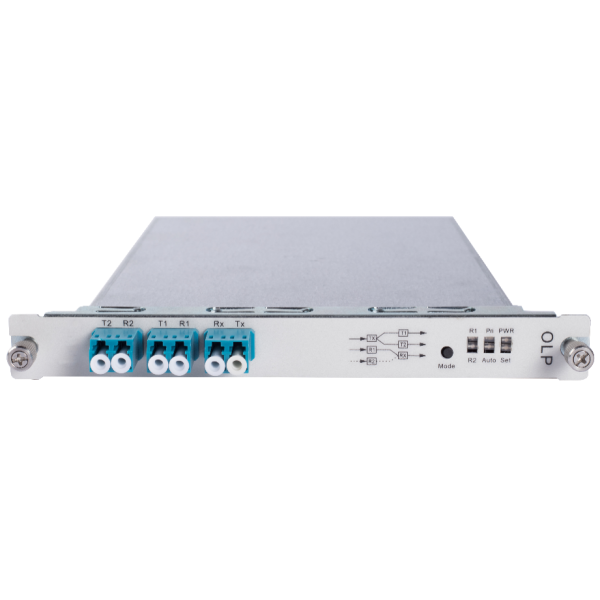

OLP Card

OLP (Optical Line Protection) is a protection system developed by GIGALIGHT for fiber optic line backup. It utilizes advanced optical path automatic switching modules and serves as an optical device for main and backup optical path switching in the field of fiber optic communication. It can automatically identify the status of the main and backup system optical signals and perform instantaneous path switching. This ensures the normal operation of the protection system when the main fiber cable encounters a complete blockage, thereby improving the service quality for operators. OLP optical line protection boards are widely used in main and backup protection for various trunk lines and network configurations requiring different optical path switching. Its advantages lie in the direct utilization of optical signals in the optical path, compact size, cost-effectiveness, and safety. Therefore, it has been applied in numerous fields of optical transmission.


Product Features

  • Supports optical path protection for single-mode and multi-mode.
  • Supports dual-fiber bi-directional and single-fiber bi-directional protection modes.
  • Supports 1+1 (dual transmitter/receiver) and 1:1 (select transmitter/receiver) protection modes.
  • Wide optical power monitoring range: -50dBm to +25dBm.
  • Short optical path protection switching time: ≤25ms.
  • Supports SNMP-based unified network management platform, management methods include CLI (telnet and console), Web, and NetRiver (graphical interface).
  • Supports local and remote control.

Product Parameters

System Parameters Technical Specifications
Wavelength Range 1310±50nm and 1550±50nm
Monitoring Optical Power Range Tx +25dBm to -50dBm
Rx +10dBm to -50dBm
Insertion Loss 1+1 Protection Transmitter ≤4.0dB
Receiver ≤1.5dB
1:1 Protection ≤1.5dB
Optical Power Measurement Accuracy ≤0.5dB (+20dBm to -50dBm)
≤1.0dB (-40dBm to -50dBm)
Optical Power Resolution ≤0.01dB
Wavelength-Related Loss ≤0.25dB
Polarization-Related Loss ≤0.1dB
Switching Time ≤20ms
Return Loss ≥45dB
Crosstalk ≥55dB
Management Methods CLI, NetRiver, Web
Module Size 177 (W) × 20 (H) × 225 (D) (mm)
Environmental Requirements Operating Temperature -10°C to 70°C
Storage Temperature -40°C to 80°C
Relative Humidity 5% to 95% non-condensing
Safety and EMC Complies with FCC, UL, CE, TUV, CSA standards
Power Consumption <5W
