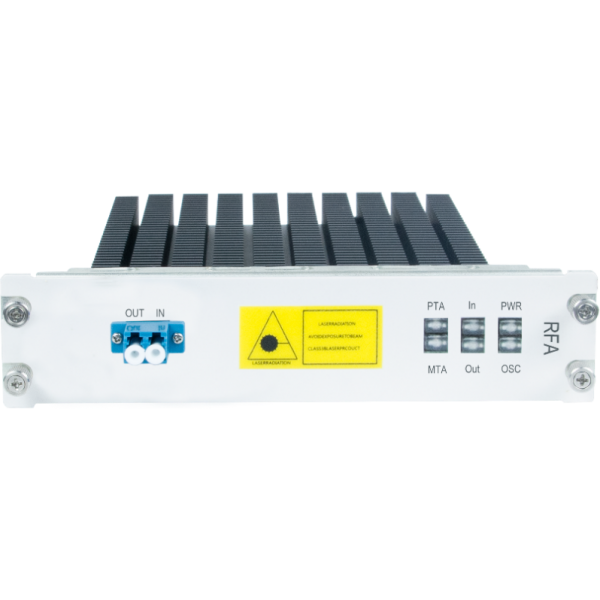

RFA Card

The RFA optical amplifier board is developed by GIGALIGHT for use in dense wavelength division multiplexing (DWDM) optical communication systems in conjunction with EDFA amplification. Based on stimulated Raman scattering (SRS) effect in optical fibers, it effectively mitigates the impact of nonlinear effects such as four-wave mixing and improves the system’s optical signal-to-noise ratio (OSNR), significantly extending the transmission distance.


Product Features

  • Supports amplification of DWDM systems in the C-band
  • Supports maximum saturated output power of -5dBm and minimum input power of -38dBm
  • Low noise figure, high gain, and low power consumption
  • Monitoring capabilities: pump drive current, pump output power, pump switch, pump temperature, input optical power, output optical power, module temperature
  • Supports SNMP-based unified network management platform, with management options including CLI (telnet and console), Web, NetRiver (graphical interface)

Product Parameters

System Parameters Technical Specifications
Wavelength Range 1528nm~1565nm
Input Power Range Minimum: -38dBm
Output Power Range -28dBm~-5dBm
Maximum Gain 10dB
Noise Figure 3dB
Gain Flatness 3dB
Output Isolation 40dB
Input/Output Return Loss 55dB
Output Pump Leakage -30dBm
Polarization Dependent Gain 0.5dB
Polarization Mode Dispersion 0.5ps
Module Dimensions 177 (W) × 40 (H) × 225 (D) (mm)
Environmental Requirements Operating Temperature -10°C ~ 70°C
Storage Temperature -40°C ~ 80°C
Relative Humidity 5% ~ 95% non-condensing
Safety and EMC Compliance Compliant with FCC, UL, CE, TUV, CSA standards
Power Consumption <30W
