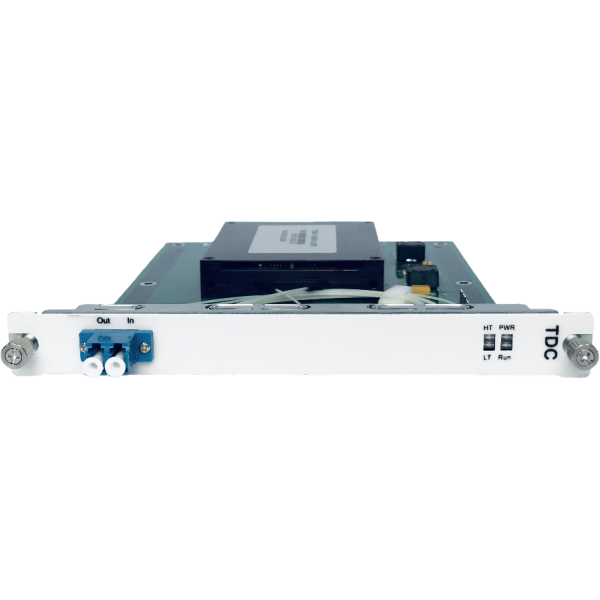

TDCM Card

TDCM (Tunable Dispersion Compensation Module) is a dispersion compensation module developed by GIGALIGHT for high-speed transmission systems. It is based on the principle of temperature-adjusted dispersion compensation fiber output to achieve accurate dispersion compensation. It can be used in long-distance optical communication transmission systems and data center interconnections at speeds of 10G/40G/100G. TDCM offers features such as long-distance compensation, high output accuracy, low insertion loss, low phase jitter, low group delay variation, and low polarization-dependent loss (PDL) and polarization mode dispersion (PMD).

Description

Product Features

Low insertion loss, low polarization mode dispersion (PMD)
High dispersion compensation level, compensation distance up to 60km
Optical path transparency, no change to the optical signal
Wideband dispersion compensation for DWDM systems

Product Parameters

System Parameters		Technical Specifications
Wavelength Range		1528.97~1567.13nm
Channel Spacing		50 GHz or 100 GHz
Absolute Dispersion Accuracy		±25 Ps/nm or ±60 Ps/nm
Insertion Loss		<5.5dB
Return Loss		50dB
Polarization-Related Loss		0.1dB
Maximum Input Power		27dBm
Maximum Power Consumption		<4.5W
Environmental Requirements	Operating Temperature	-10°C to 70°C
	Storage Temperature	-40°C to 80°C
	Relative Humidity	5% to 95% non-condensing
Safety and EMC		Complies with FCC, UL, CE, TUV, CSA standards
Power Consumption		<10W

Additional information

Application	Coherent Optical Communication, Metropolitan Area Network, Telecom
Product Type	Subsystems
Media Type	SMF
