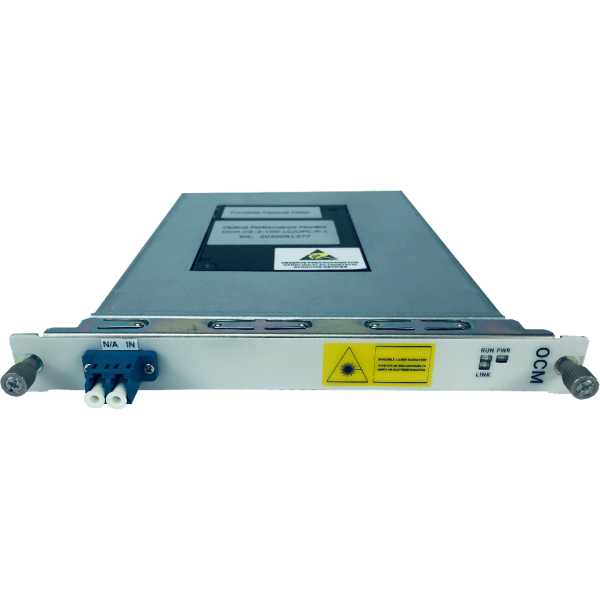

OCM Card

The DWDM Multi-Channel Monitoring Board, also known as OCM (Optical Channel Monitor), is designed to enable online monitoring of the center wavelength, power level, signal-to-noise ratio, and number of optical channels in the system. It reports the monitored wavelength, power level, and number of optical channels to the main control board for processing. It allows the system to monitor different points along the routes, making it easier and more convenient for the system to detect alarms and locate faults.

Description

Product Features

  • OCM supports spectral analysis of 1/4/8-channel signals.
  • Completes channel monitoring, analyzes channel status data, and generates power addition and power drop alarms.
  • Monitors and reports optical power, center wavelength, signal-to-noise ratio, and number of wavelengths.
  • Communicates with the main control board and receives control instructions from the main control board.
  • Utilizes optical switching for selecting the direction of the optical path.

Product Parameters

System Parameters Technical Specifications
Wavelength Range 1528~1568 nm
Channel Spacing 50 GHz
Supported Signal Rate 100 G bit/s
Absolute Wavelength Accuracy ±50 pm
Channel Power Range -40 dBm – 10 dBm
Absolute Power Accuracy ±0.8 dB
Relative Power Accuracy 1 dB
Power Resolution 0.1 dB
Single-Wavelength Power Detection Range -40 dBm – 10 dBm
Power Detection Accuracy ±1.5 dBm
Non-Adjacent Channel Power Divergence 10 dB
Scan Time 1000 ms
Number of Optical Ports for Detection 1/4/8
Size and Weight 177 (W) × 20 (H) × 225 (D) (mm), less than 0.5 kg
Environmental Conditions Operating Temperature: -5°C to +55°C
Operating Humidity: ≤95% (non-condensing)
Storage Temperature: -40°C to +70°C
