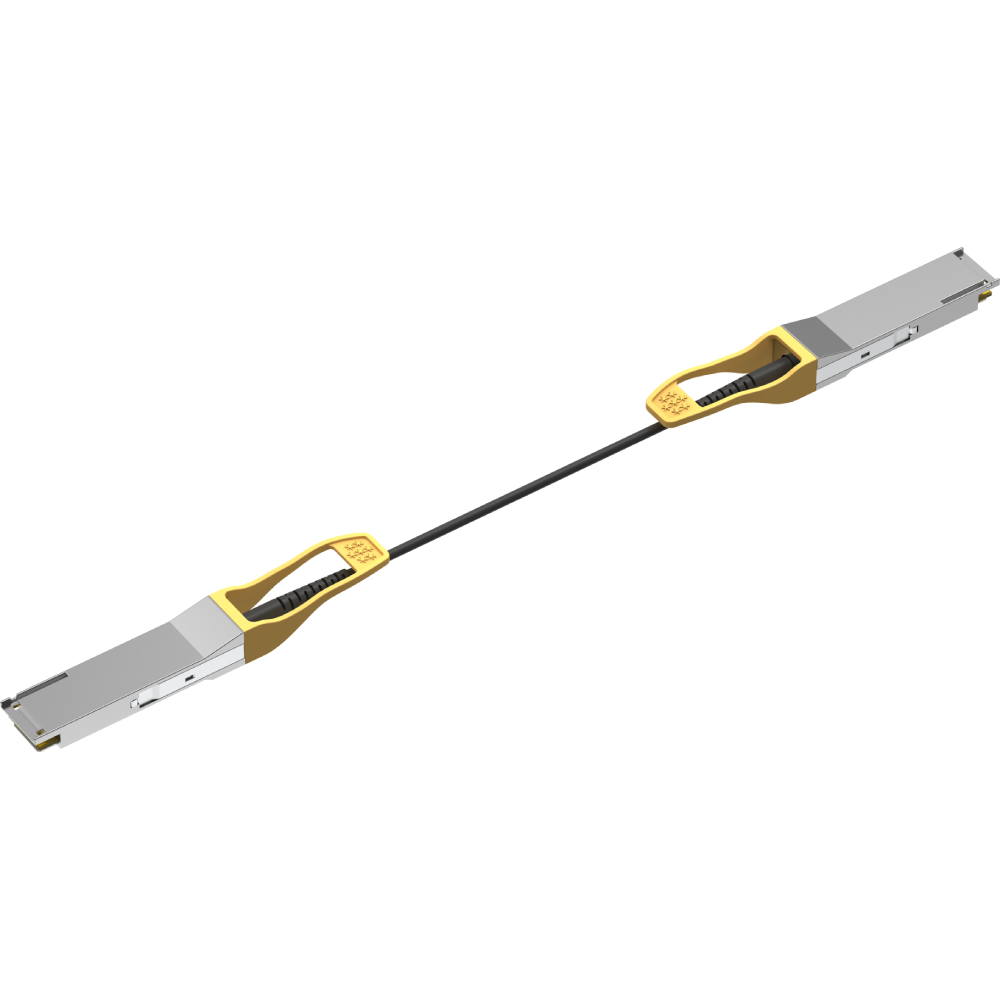

GIGALIGHT's 100G QSFP28 HAOC is a portfolio of industrial-grade hardened active optical cable assemblies designed for the fronthaul applications of 5G Open RAN. The 100G HAOC products support four lanes of 25GE/eCPRI signals and a maximum distance of up to 70 meters over OM3 multimode fiber.Get a Quote

Features

Applications

Datasheets

Part Number	Product Description
GQS-MDO101-xxxT	100G QSFP28 eCPRI HAOC, Standard Type, 1m~70m, I-Temp

Product Features

Hot-pluggable QSFP28 form-factor connectors
Full-duplex active optical cable assembly
Support 40GE and 56G FDR data rate
4-channel 850nm VCSEL laser array and PIN photo-detector array
Maximum link length of 70m on OM3 Multimode Fiber (MMF)
Internal CDR circuits on both receiver and transmitter channels
Comply with QSFP28 MSA, SFP28 MSA, IEEE 802.3bm 100GBASE-SR4 and eCPRI specifications
Data rate up to 103.125Gbps
Built-in digital diagnosis function
Operating case temperature range from -40℃ to +85℃
3.3V power supply voltage
RoHS compliant (lead free)
Hardened active optical cable with metal tube and Kevlar strengthen

IEEE 802.3bm 100GBASE-SR4 Ethernet
4x 25G eCPRI

100G QSFP28 HAOC - GQS-MDO101-xxxT

Name*
Email*
Company*
Phone
Product*

100G QSFP28 HAOC

Ordering Information

Product Features

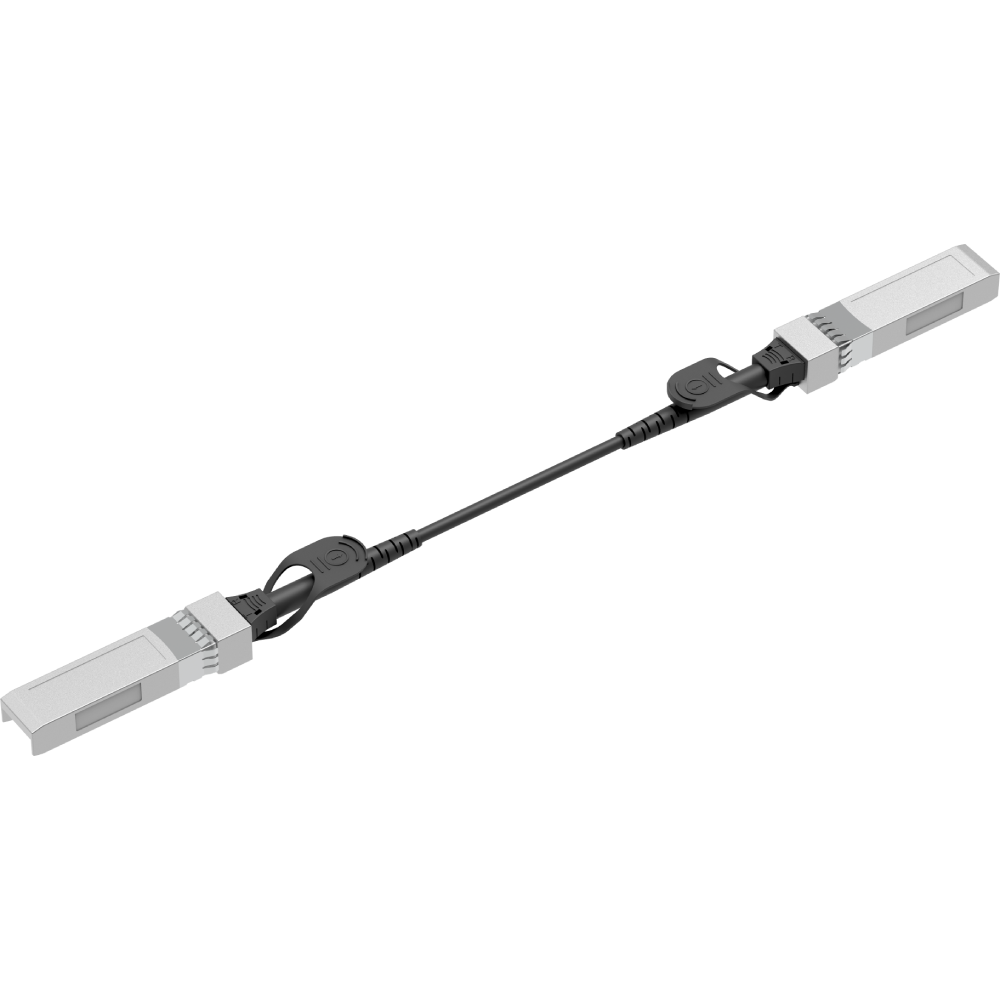

10G SFP+ HAOC

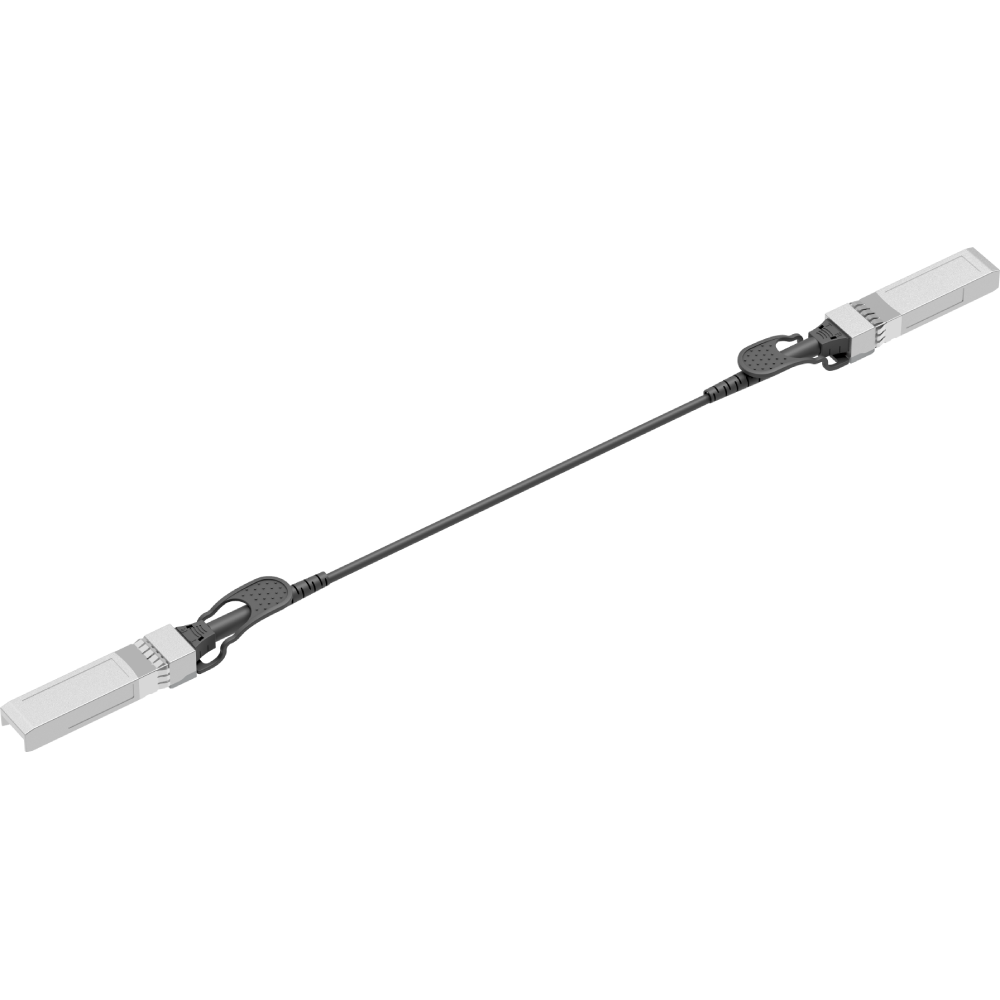

25G SFP28 HAOC

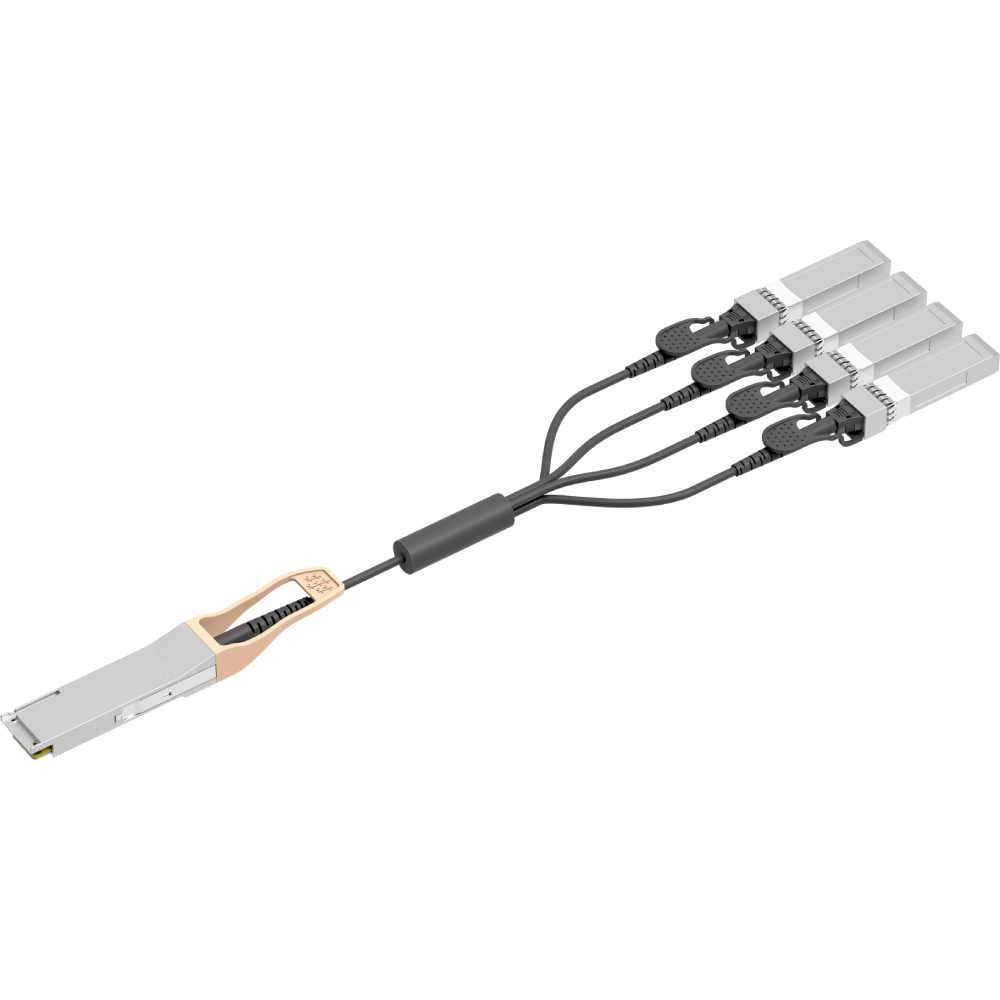

100G QSFP28 to 4x 25G SFP28 HAOC
