100G QSFP28 ER4 EML LWDM4 40km Transceivers (No FEC required)

GIGALIGHT's 100G QSFP28 ER4 optical transceiver modules are designed to support 100G Ethernet and OTN OTU4, suitable for data center and telecom links up to 40km (without FEC, BER=10^-12) over single mode fiber. The 100G QSFP28 ER4 modules operate at four LWDM (short for LAN-WDM) wavelengths of 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm.Get a Quote

Features

Applications

Datasheets

More

Hot-pluggable QSFP28 form factor full-duplex transceiver module
4-channel cooled LWDM EML TOSA and PIN ROSA with SOA
Data rate up to 28Gbps per channel
Compliant with QSFP28 MSA (SFF-8665) and IEEE 802.3ba 100GBASE-ER4
Compliant with OTN OTU4
Internal CDR circuits on both receiver and transmitter channels
Supports error-free transmission up to 40km over SMF without FEC
Duplex LC receptacle
6W maximum power dissipation
Case operating temperature range: C-Temp
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

Part Number	Product Description
GQS-SPO111-ER4C	100GE/OTU4 QSFP28 ER4 EML LWDM4 40km Transceiver

100G Ethernet IEEE 802.3ba 100GBASE-ER4
OTN OTU4
Data Center Interconnection
Telecom Network

100G QSFP28 eER4 60km - GQS-SPO101-eER4C

　　　　　　　　　　　　　　　　　　　　

　　　　　

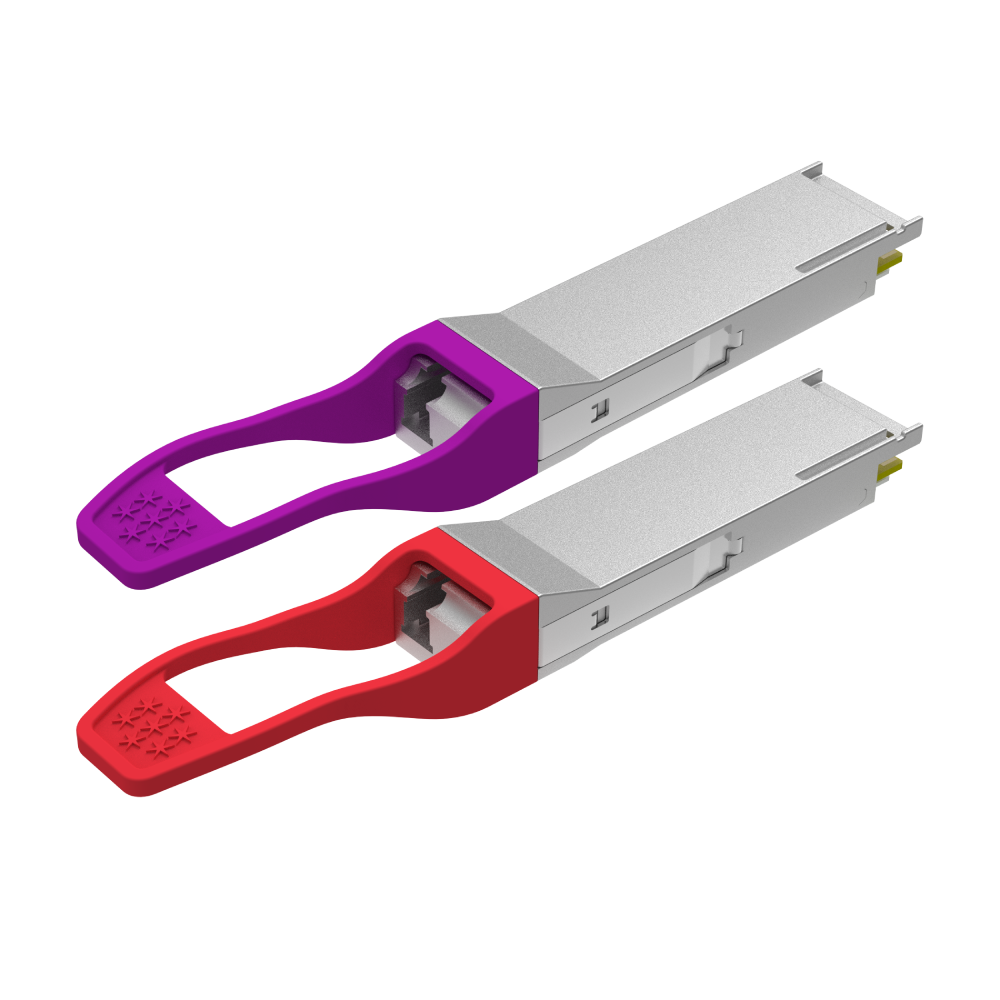

100G QSFP28 BiDi LR1 EML 1271nm/1331nm 10km Transceivers

　

　　　　　

100G QSFP28 BiDi eLR1 EML 1291nm/1311nm 20km Transceivers

　

　　　　　

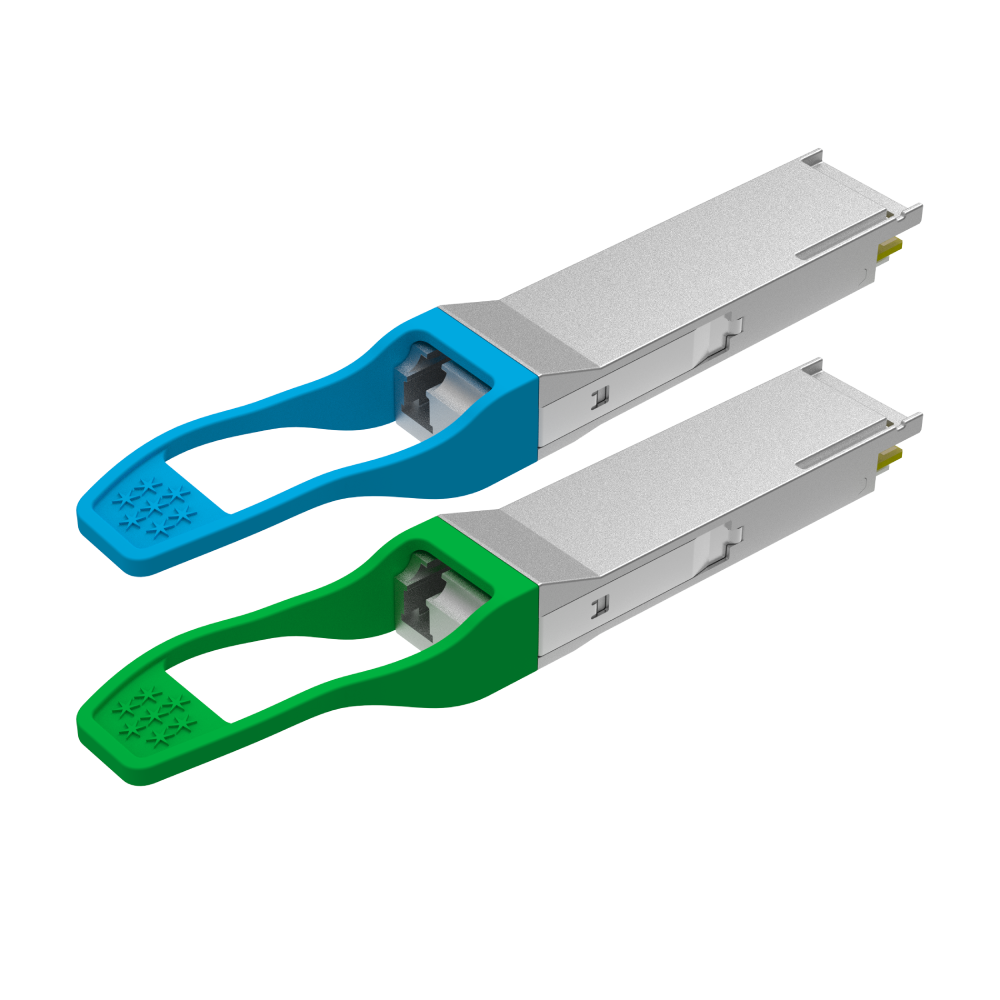

100G QSFP28 BiDi ER1 EML 1304nm/1309nm 40km Transceivers

　

　　　　　

100G QSFP28 LR1 EML 1310nm 20km Transceivers

　

　　　　　

100G QSFP28 ER1 EML 1310nm 40km Transceivers

　

　　　　　

100G QSFP28 SR BiDi VCSEL 850nm/910nm 100m Transceivers

　

　　　　　

100G QSFP28 SWDM4 VCSEL 150m Transceivers

　

　　　　　

100G QSFP28 SR4 VCSEL 850nm 100m/300m Transceivers (I-Temp Optional)

　

　　　　　

100G QSFP28 PSM4 DML 1310nm 2km/10km Transceivers (I-Temp Optional)

　

　　　　　

100G QSFP28 CWDM4 DML 2km/10km Transceivers (I-Temp Optional)

　

　　　　　

100G QSFP28 CLR4 DML CWDM4 2km/10km Transceivers (I-Temp Optional)

　

　　　　　

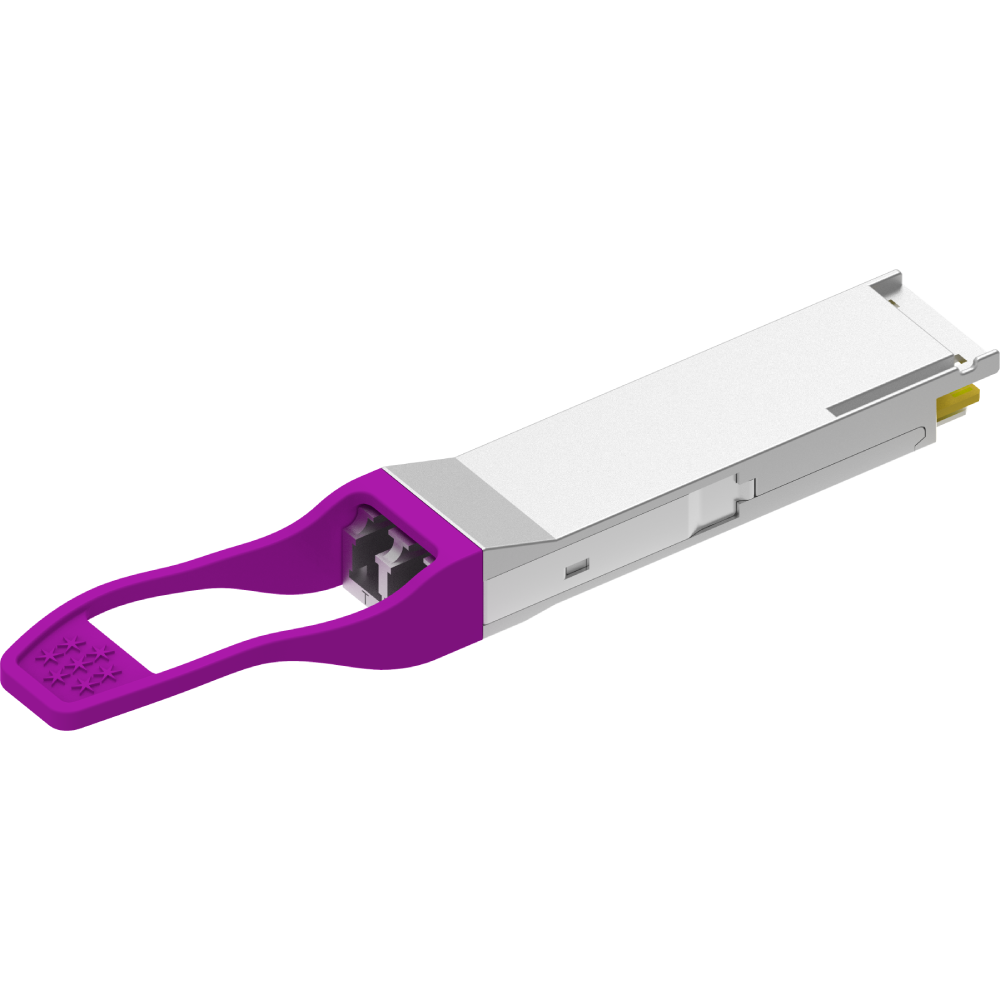

100G QSFP28 4WDM-10 DML CWDM4 10km Transceivers (I-Temp Optional)

　

　　　　　

100G QSFP28 LR4 DML LWDM4 10km/20km Transceivers (I-Temp Optional)

　

　　　　　

100G QSFP28 4WDM-40 DML LWDM4 30km/40km Transceivers (I-Temp Optional)

　

　　　　　

100G QSFP28 ER4 Lite DML LWDM4 30km/40km Transceivers

　

　　　　　

100G QSFP28 eER4 EML LWDM4 60km Transceivers (No FEC required)

　

　　　　　

100G QSFP28 ZR4 EML LWDM4 80km Transceivers (Max. 90km)

　

　　　　　

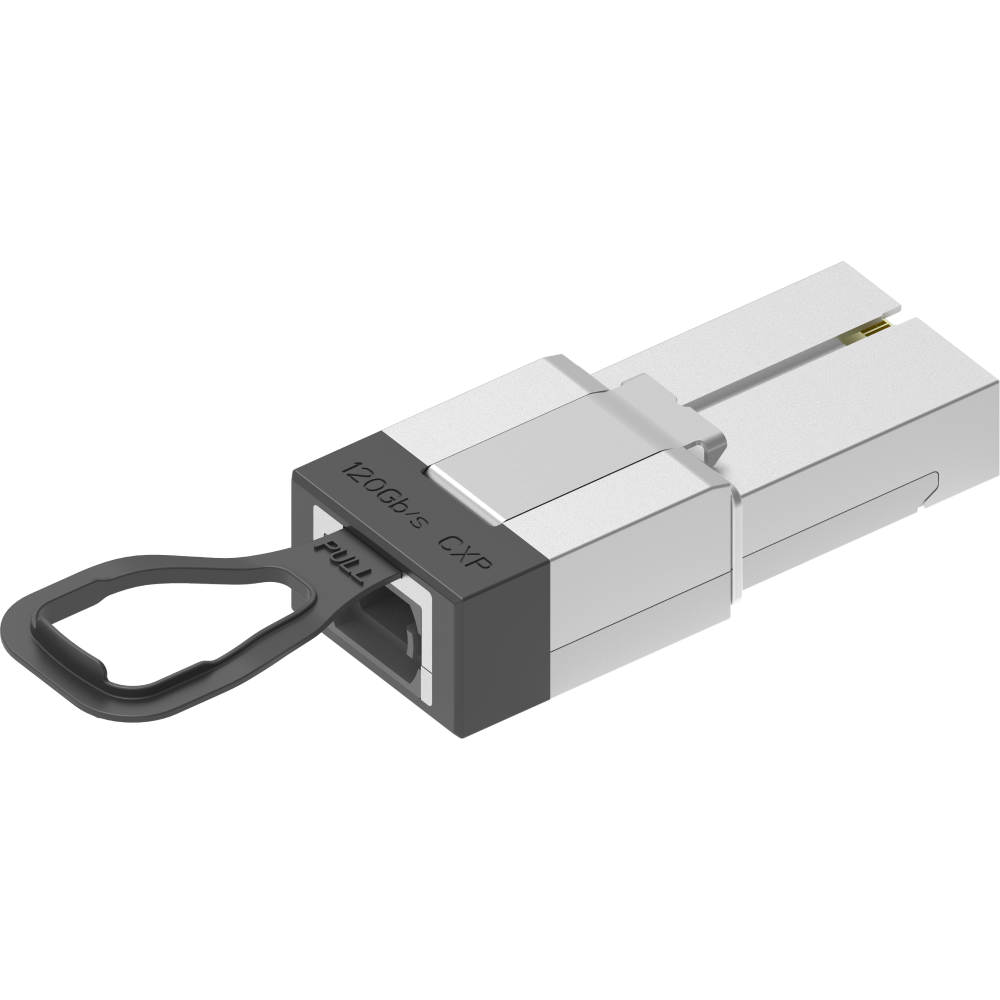

120G CXP SR10 VCSEL 850nm 400m Transceivers

　
