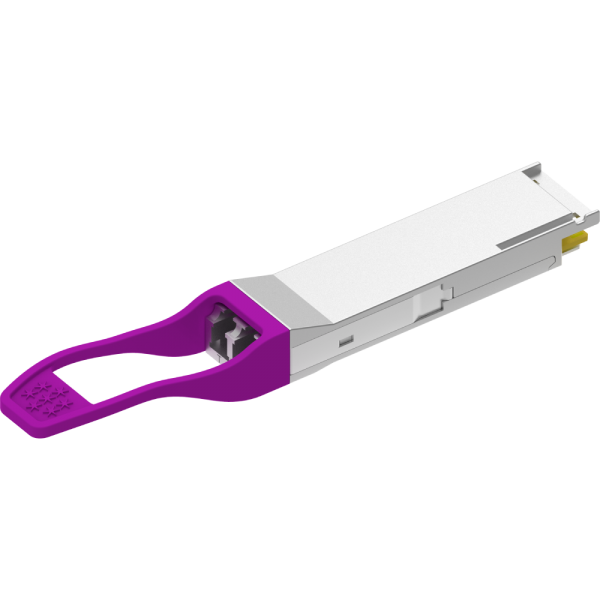

100G QSFP28 4WDM-10 DML CWDM4 10km Optical Transceiver

GIGALIGHT 100G QSFP28 4WDM-10 optical transceiver is used for long distance interconnection in data centers and is compliant with 100G 4WDM-10 MSA specification. The product has a built-in pair of 4-channel CWDM MUX and DEMUX with center wavelengths of 1271nm, 1291nm, 1311nm and 1331nm, respectively, and can be transmitted over distances up to 40km using a single-mode fiber pair (with FEC enabled).

Description

Hot-pluggable, full-duplex transceiver module packaged in QSFP28 form factor
4 channels DFB-based CWDM uncooled transmitter and PIN ROSA
Transmission rates of up to 25.78125Gbps per channel
Compliant with QSFP28 MSA and 100G 4WDM-10 MSA Ethernet transport protocol
Distance up to 10km using 1 pairs of single-mode fibers (both require FEC to be turned on)
Power consumption less than 4w
Dual LC optical connectors
Commercial and industrial grade operating temperature range
Supply voltage 3.3V
RoHS compliant (lead-free)

P/N	Description
GQS-SPO101-4LR4C	100GE QSFP28 4WDM-10 DML CWDM4 10km Optical Module
GQS-SPO101-4LR4T	Industrial-grade 100GE QSFP28 4WDM-10 DML CWDM4 10km Optical Module

Additional information

Product Type	Pluggable Optical Modules
Application	Data Center
Data Rate	100G-112G
Protocol	Ethernet, InfiniBand
Form Factor	QSFP28
Reach	2km-20km
Media Type	SMF
Wavelength	CWDM
Interface	Dual LC
