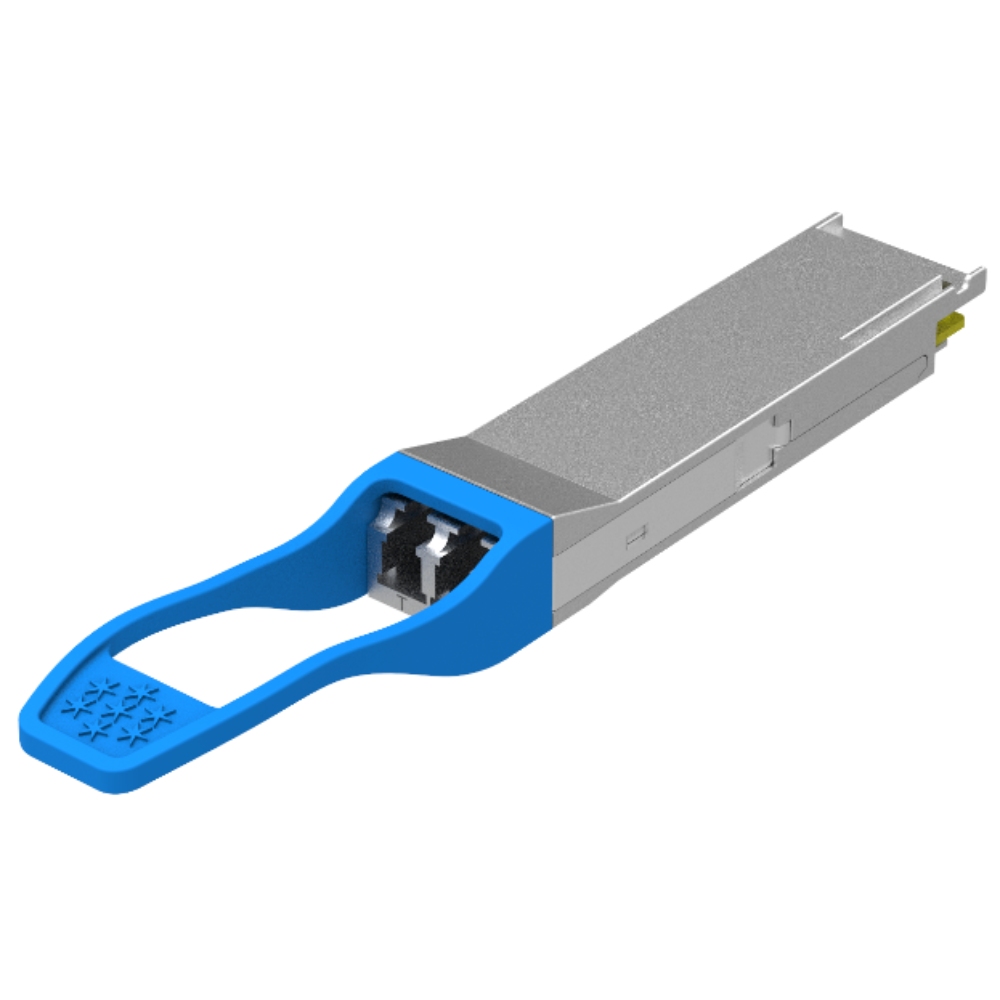

100G QSFP28 DR1 Silicon Photonics 1310nm 500m Transceiver

GIGALIGHT 100G QSFP28 DR1 silicon photonics transceiver is compliant with the IEEE 802.3cd 100GBASE-DR specification and supports 100G Ethernet links up to 500m over a pair of single mode fibers. It can convert four 25G NRZ electrical signals into a single 100G PAM4 optical signal and reversely convert a single 100G PAM4 optical signal into four 25G NRZ electrical signals to achieve 106.25Gb/s full-duplex transmission. Benefiting from the silicon photonics technology, it has become one of the most cost-effective solutions for data center interconnection within 500m.Get a Quote

Features

Applications

Datasheets

Hot-pluggable QSFP28 form factor full-duplex transceiver module
Internal 4:1 Gearbox DSP on both receiver and transmitter channels
4x 25.78125Gb/s NRZ electrical interface (CAUI-4)
106.25Gb/s PAM4 based on silicon photonics
Compliant with QSFP28 MSA (SFF-8665) and IEEE 802.3cd 100GBASE-DR
Reach up to 500m over SMF with KP-FEC
4W maximum power dissipation
Duplex LC receptacle
Built-in digital diagnostic functionality
Case operating temperature range: C-Temp
Single 3.3V power supply
RoHS compliant (lead free)

Part Number	Product Description
GQS-SI101DR1C	100GE QSFP28 DR1 Silicon Photonics 1310nm 500m Transceiver

100G Ethernet IEEE 802.3cd 100GBASE-DR
Data Center Intraconnection
