100g-qsfp28-aoc

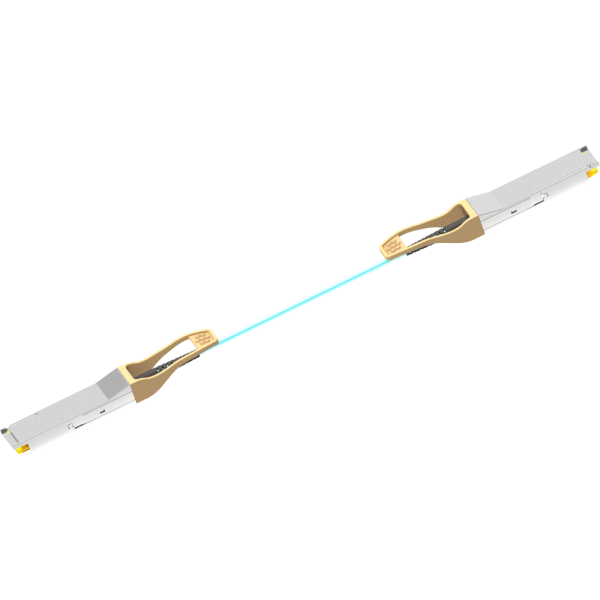

128GFC QSFP28 AOC

The GIGALIGHT 128GFC QSFP28 pluggable active optical cable assemblies support 100GBASE-SR4 Ethernet, InfiniBand EDR and 128G (4x 32G) Fibre Channel data rates.

Description

Hot-pluggable QSFP28 active optical cable assemblies
4x 28G NRZ electrical interface
4x 28G NRZ optical interface
Data rate up to 28.05Gbps per channel
Compliant with QSFP28 MSA, 100GBASE-SR4 Ethernet, InfiniBand EDR and 128GFC
Low power dissipation
Commercial or industrial case operating temperature range
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

Additional information

Application	Data Center
Data Rate	100G
Form Factor	QSFP28
Media Type	MMF
Product Type	Active Optical Cables
Protocol	Ethernet, InfiniBand
Reach	＜500m
Wavelength	850nm

Ordering Information

Description	Data Rate	Distance	Max.Power Consumption	P/N
128GFC QSFP28 AOC	112.2Gbps	70m(OM3)/100m(OM4)	2W	GQS-MDO111-xxxC
128GFC QSFP28 AOC Lite	112.2Gbps	200m(OM3)/300m(OM4)	2W	GQS-MDO111-exxxC
