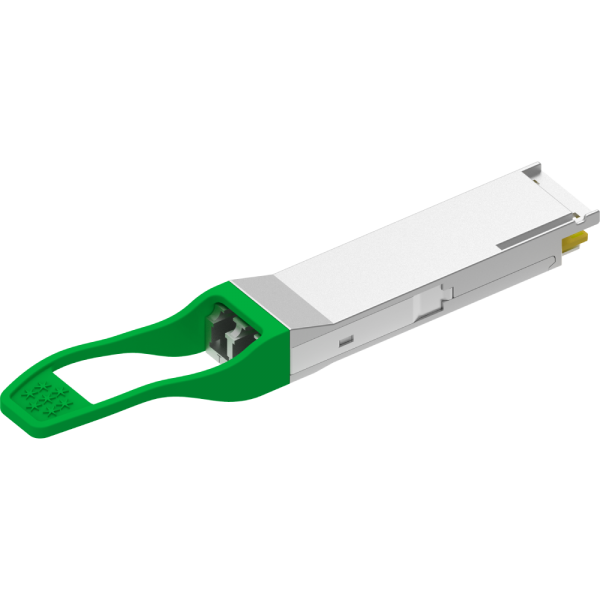

    100g-qsfp28-cwdm4

    100G QSFP28

    The GIGALIGHT 100G QSFP28 pluggable optical transceiver modules support 100G Ethernet, InfiniBand EDR, 128GFC and OTN OTU4 data rates. This portfolio includes SR4/SWDM4/SR1.2/SR2 100m, PSM4/CWDM4/CLR4 2km, PSM4/CWDM4/CLR4/LR4/4WDM-10 10km, LR4 20km, ER4 Lite 30km/40km, ER4 40km, eER4 60km, ZR4 80km, and PSM DWDM2/DWDM4 80km etc.

    Get a Quote

    Description

    • Hot-pluggable QSFP28 transceiver modules
    • 4x 25G NRZ electrical interface
    • 4x 25G NRZ,2x 50G PAM4 or 1x 100G PAM4 optical interface
    • Compliant with QSFP28 MSA and IEEE 802.3
    • Low power dissipation
    • Built-in digital diagnostic functionality
    • Commercial case operating temperature range
    • Single 3.3V power supply
    • RoHS compliant (lead free)

    4-Channel Optical Transceiver

    DescriptionModulation LDDistanceConnectorMax. Power
    Consumption    		Operating
    Temp. Grade     		Product Number
    100G QSFP28 SR44x 25G NRZ850nm VCSEL100mMPO122WC/IGQS-MPO101-SR4C
    GQS-MPO101-SR4T
    GQS-MPO111-SR4C OTN
    GQS-MPO111-SR4T OTN
    100G QSFP28 eSR44x 25G NRZ850nm VCSEL300mMPO122WC/IGQS-MPO101-eSR4C
    GQS-MPO101-eSR4T
    GQS-MPO111-eSR4C OTN
    100G QSFP28 SR24x25G NRZ850nm VCSEL100mMPO124WCGQS-MPO101-SR2C
    100G QSFP28 PSM44x 25G NRZ1310nm DML 2km / 10kmMPO123.5WC/IGQM-SPO101-IR4C
    GQM-SPO101-LR4C
    GQM-SPO101-LR4T
    100G QSFP28 CWDM44x 25G NRZCWDM4 DML2km / 10km Duplex LC3.5WC/IGQS-SPO101-CIR4C
    GQS-SPO101-CLR4C
    GQM-SPO101-CLR4T
    100G QSFP28 SWDM44x 25G NRZSWDM VCSEL70m（OM3）
    100m（OM4）
    150m（OM5）    		Duplex LC3.5WCGQS-MPO101-SM4C
    100G QSFP28 CLR44x 25G NRZCWDM4 DML2km / 10kmDuplex LC3.5WC/IGQS-SPO101-CCR4C
    GQS-SPO101-CMR4C
    100G QSFP28 4WDM-104x 25G NRZCWDM4 DML10kmDuplex LC4WC/IGQS-SPO101-4LR4T
    100G QSFP28 LR44x 25G NRZLWDM4 DM10km / 20kmDuplex LC3.5WC/IGQS-SPO101-LR4C
    GQS-SPO101-LR4T
    GQS-SPO111-LR4C OTN
    GQS-SPO101-L24C
    GQS-SPO111-L24C OTN
    100G QSFP28 4WDM-404x 25G NRZLWDM4 DML30km w/o FEC
    40km w/ FEC    		Duplex LC3.8WC/IGQS-SPO101-4ER4C
    GQS-SPO101-4ER4T
    100G QSFP28 ER4 Lite4x 25G NRZLWDM4 DML30km w/o FEC
    40km w/ FEC    		Duplex LC3.8WCGQS-SPO101-ES4C
    GQS-SPO111-ES4C OTN
    100G QSFP28 ER44x 25G NRZLWDM4 EML40km w/o FECDuplex LC6WCGQS-SPO101-ER4C
    100G QSFP28 eER44x 25G NRZLWDM4 EML60km w/o FECDuplex LC6WCGQS-SPO101-eER4C
    100G QSFP28 ZR44x 25G NRZLWDM4 EML60km w/o FEC
    80km w/ FEC    		Duplex LC6WCGQS-SPO101-ZR4C
    GQS-SPO111-ZR4C OTN
    100G QSFP28 BiDi ZR44x 25G NRZLAN WDM EML80kmSimplex LC6.5WCGBQ-U101-ZR4
    GBQ-D101-ZR4
    100G QSFP28 PSM DWDM44x 25G NRZO-band 150GHz
    C-band 100GHz     		40km
    80km    		MPO5WCGQS-Oxx101-ER4C
    GQS-Dxx101-124C
    128GFC QSFP28 SR44x 25G NRZ850nm VCSEL100mMPO122WC/IGQS-MPO111-SR4C
    GQS-MPO111-SR4T
    128GFC QSFP28 eSR44x 25G NRZ850nm VCSEL300mMPO122WC/IGQS-MPO111-eSR4C
    100G QSFP28 SR4 Rugged 4x 25G NRZ850nm VCSEL70m(OM3)
    100m(OM4)    		MPO123.5WCGQF-MPO101-SR4CC
    100G QSFP28 CWDM4 Rugged 4x 25G NRZCWDM4 EML2kmMPO123.5WC/IGQF-SPO101-CLR4CD
    100G QSFP28 PSM4 Rugged4x 25G NRZ1310nm DML2kmMPO123.5WC/IGMF-SPO101-LR4CA

    Single Lambda Optical Transceiver

    DescriptionCategory WavelengthDistanceConnectorMax. Power
    Dissipation    		Operating Temp.
    Grade     		P/N
    100G QSFP28 SR1.2 (SR BiDi)III-V850nm/910nm100mDuplex LC4WCGBQ-8591101-SRC
    100G QSFP28 SR1III-V850nm100mDual LC3.5WCGQS-MPO101-SR1
    100G QSFP28 DR1SiPh 1310nm500mDual LC4WCGQS-SI101DR1C
    100G QSFP28 DR1III-V 1310nm500mDual LC 4WCGQS-SPO101-DR1C
    100G QSFP28 FR1SiPh1310nm2kmDual LC4WCGQS-SI101FR1C
    100G QSFP28 FR1III-V1310nm2kmDual LC3.5WCGQS-SPO101-FR1C
    100G QSFP28 LR1SiPh1310nm10kmDual LC4WCGQS-SI101LR1C
    100G QSFP28 LR1III-V1310nm20kmDual LC4WCGQS-SPO101-LR1C
    100G QSFP28 ER1-30III-V1310nm30kmDual LC4WCGQS-SPO101-ES1C
    100G QSFP28 BiDi LR1III-V1271nm / 1331nm10kmSingle LC3.5WCGBQ-2733101-LR1C
    GBQ-3327101-LR1C
    100G QSFP28 BiDi xLR1III-V1291nm / 1311nm20kmSingle LC3.5WCGBQ-2931101-L2C & GBQ-3129101-L2C
    100G QSFP28 BiDi ER1-30III-V1304nm/1309nm30kmSimplex LC3.5WCGBQ-0409101-ES1C & GBQ-0904101-ES1C
    100G QSFP28 CWDM LR1III-VCWDM10kmDual LC3.5WCGQS-Cxx101-LR1C
    100G QSFP28 DWDM1SiPhO-BAND30kmDual LC3.5WCGQS-SIOX101-LR1C
    GQS-SIOXX101-LR1C
