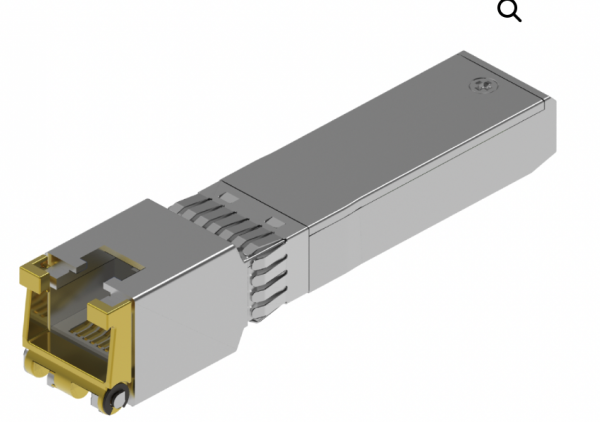

10G Copper SFP+ Transceiver Module

10G Copper SFP+

GIGALIGHT's 10G Copper SFP+ transceiver module is designed for 10GBASE-T Ethernet links reach up to 100m over Cat6A twisted pair cable.Get a Quote
Features
Applications
Datasheets
More
Part Number Product Description
GE-XB-P7RC 10GBASE-T SFP+, 30m on Cat 6A twisted pair cable, RJ-45

10GBASE-T SFP+ Cat 6A 30m RJ-45 - GE-XB-P7RC

  • Supports Links up to 30m using Cat 6A Cable
  • SFF-8431 and SFF-8432 MSA Compliant
  • IEEE 802.3az and 802.3an Compliant
  • IEEE 802.3bz for 5G&2.5G BASE-T
  • Hot-pluggable SFP+ footprint
  • TX Disable and RX Los function
  • Fully metallic enclosure for Low EMI Emissions
  • +3.3V single power supply
  • Low Power Consumption (2.5W MAX @ 30m)
  • Compact RJ-45 connector assembly
  • Access to physical layer IC via 2-wire serial bus
  • XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On
  • Auto-negotiates with other 10GBase-T PHYs
  • Supports 100/1000Base-T using Cat 5e cable or better
  • MDI/MDIX Crossover
  • Multiple Loopback Modes for Testing and Troubleshooting
  • Built-in Cable Monitoring and Link Diagnostic
  • Unshielded and Shielded cable support
  • Commercial operating case temperature range of 0°C to 70°C
  • 10GBASE-T Ethernet
  •
  •

    100M/1G Copper SFP
