100M/1G Copper SFP

GIGALIGHT's 100M/1G Copper SFP transceiver modules are designed for Fast Ethernet 10/100BASE-T and Gigabit Ethernet 10/100/1000BASE-T links reach up to 100m over Cat 5/5e twisted pair cable.Get a Quote

Features

Applications

Datasheets

More

100M Copper SFP

Part Number	Product Description
GE-FB-P4RC	100BASE-T Copper SFP, 100m on Cat 5/5e twisted pair cable, RJ-45
GE-FB-P4RT	100BASE-T Copper SFP, 100m on Cat 5/5e twisted pair cable, RJ-45, I-temp
GE-FB-P2RC	10/100BASE-T Copper SFP, 100m on Cat 5/5e twisted pair cable, RJ-45
GE-FB-P2RT	10/100BASE-T Copper SFP, 100m on Cat 5/5e twisted pair cable, RJ-45, I-temp

100BASE-T SFP Cat 5/5e 100m RJ-45 - GE-FB-P4RC

Hot-pluggable SFP footprint
Fully metallic enclosure for low EMI
Compact RJ-45 connector assembly
Supports RX_LOS(Loss of Signal) function
Compatible with IEEE 802.3u
Access to physical layer IC via 2-wire serial bus
100BASE-TX to 100BASE-FX converter
Data rate up to 100Mbps
Reach up to 100m over Cat5 twisted pair cable
Commercial operating case temperature range of 0°C to 70°C
3.3V power supply voltage
RoHS compliant (lead free)

100BASE-T SFP Cat 5/5e 100m RJ-45 (IT) - GE-FB-P4RT

Hot-pluggable SFP footprint
Fully metallic enclosure for low EMI
Compact RJ-45 connector assembly
Supports RX_LOS(Loss of Signal) function
Compatible with IEEE 802.3u
Access to physical layer IC via 2-wire serial bus
100BASE-TX to 100BASE-FX converter
Data rate up to 100Mbps
Reach up to 100m over Cat5 twisted pair cable
Industrial operating case temperature range: -40°C to +85°C
3.3V power supply voltage
RoHS compliant (lead free)

10/100BASE-T SFP Cat 5/5e 100m RJ-45 - GE-FB-P2RC

Hot-pluggable SFP footprint
Fully metallic enclosure for low EMI
Compact RJ-45 connector assembly
Supports RX_LOS(Loss of Signal) function
Compatible with IEEE 802.3u
Access to physical layer IC via 2-wire serial bus
10/100BASE-TX to 100BASE-FX converter
Data rate up to 100Mbps
Reach up to 100m over Cat5 twisted pair cable
Commercial operating case temperature range of 0°C to 70°C
3.3V power supply voltage
RoHS compliant (lead free)

10/100BASE-T SFP Cat 5/5e 100m RJ-45 (IT) - GE-FB-P2RT

Hot-pluggable SFP footprint
Fully metallic enclosure for low EMI
Compact RJ-45 connector assembly
Supports RX_LOS(Loss of Signal) function
Compatible with IEEE 802.3u
Access to physical layer IC via 2-wire serial bus
10/100BASE-TX to 100BASE-FX converter
Data rate up to 100Mbps
Reach up to 100m over Cat5 twisted pair cable
Industrial operating case temperature range: -40°C to +85°C
3.3V power supply voltage
RoHS compliant (lead free)

1G Copper SFP

Part Number	Product Description
GE-GB-P3RC-E	1000BASE-T SFP, 100m on Cat 5/5e twisted pair cable, RJ-45, TX Disable function & Link Indicator on RX_LOS Pin
GE-GB-P3RC-C5	1000BASE-T SFP, 100m on Cat 5/5e twisted pair cable, RJ-45
GE-GB-P1RC-E	10/100/1000BASE-T SFP, 100m on Cat 5/5e twisted pair cable, RJ-45

1000BASE-T SFP Cat 5/5e 100m RJ-45 (With TX Disable function and Link Indicator on RX_LOS Pin) - GE-GB-P3RC-E

Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
With TX Disable function and Link Indicator on RX_LOS Pin
Fully metallic enclosure for low EMI
+3.3V single power supply
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
1000 BASE-T operation in host systems with SERDES interface
Commercial operating case temperature range of 0°C to 70°C

1000BASE-T SFP Cat 5/5e 100m RJ-45 (Without TX Disable function or Link Indicator on RX_LOS Pin) - GE-GB-P3RC-C5

Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Without TX Disable function or Link Indicator on RX_LOS Pin
Fully metallic enclosure for low EMI
+3.3V single power supply
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
1000 BASE-T operation in host systems with SERDES interface
Commercial operating case temperature range of 0°C to 70°C

10/100/1000BASE-T SFP Cat 5/5e 100m RJ-45 - GE-GB-P1RC-E

Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
With TX Disable function and Link Indicator on RX_LOS Pin
Fully metallic enclosure for low EMI
+3.3V single power supply
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
10/100/1000Mbps compliant in host systems with SGMII interface
Commercial operating case temperature range of 0°C to 70°C

100BASE-T Ethernet
10/100BASE-T Ethernet
1000BASE-T Ethernet
10/100/1000BASE-T Ethernet

100BASE-T SFP (IT) - GE-FB-P4RT

　　　　　　　　　　　　　　　　　　　　

10/100BASE-T SFP (IT) - GE-FB-P2RT

　　　　　　　　　　　　　　　　　　　　

10/100/1000BASE-T SFP - GE-GB-P1RC-E

　　　　　　　　　　　　　　　　　　　　

1000BASE-T SFP - GE-GB-P3RC-E

　　　　　　　　　　　　　　　　　　　　

10/100BASE-T SFP - GE-FB-P2RC

　　　　　　　　　　　　　　　　　　　　

100BASE-T SFP - GE-FB-P4RC

　　　　　　　　　　　　　　　　　　　　

　　　　　

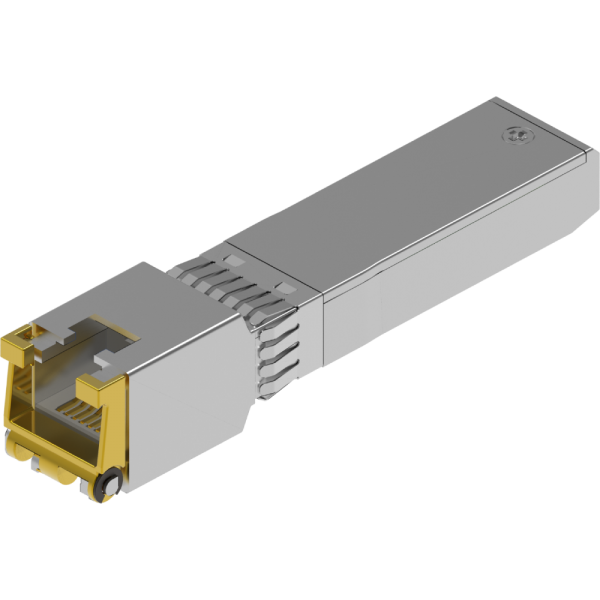

10G Copper SFP+

　
